Energy-Saving Board Turnover Machine with Customizable PLC Control and 180° Flipping Angle for Industrial Drying Lines
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | OSMANUV |
| Сертификация: | ISO9001 |
| Номер модели: | Спецификация |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект |
|---|---|
| Цена: | Возможен торг |
| Упаковывая детали: | Деревянная упаковка |
| Время доставки: | 30 дней |
| Условия оплаты: | Т/Т |
| Поставка способности: | Переговоры |
|
Подробная информация |
Характер продукции

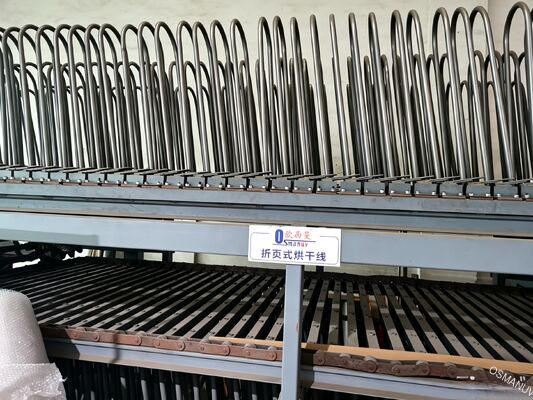

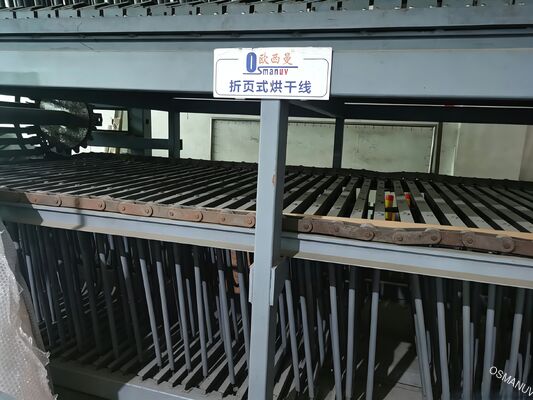

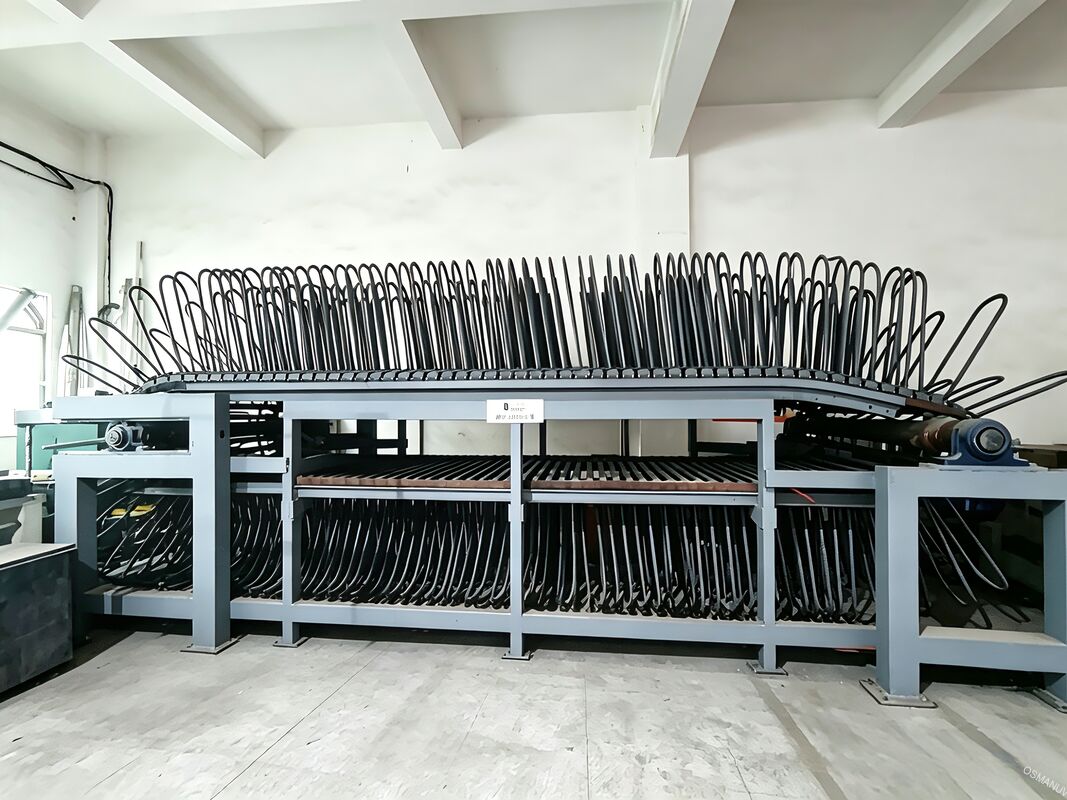

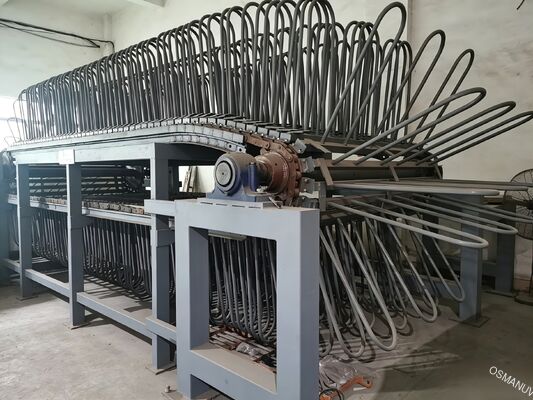

Energy-Saving Board Turnover Machine for Folding Oven Line | Customizable PLC Control System
Product Overview
This turnover machine is specially designed for folding drying lines in continuous board or panel production. It automatically flips boards/plates 180° to ensure uniform drying on both sides. The unit integrates seamlessly with upstream and downstream conveyors. Its customizable flipping angle (0-180°), dwell time, and gripping pressure allow adaptation to different product thicknesses and materials. A robust steel frame and servo-driven mechanism ensure stable operation at line speeds up to 15 m/min.
Technical Parameters
| Parameter | Standard Value | Customizable Range |
|---|---|---|
| Max board width | 1300 mm | 600 - 2000 mm |
| Max board length | 2500 mm | 1000 - 4000 mm |
| Board thickness range | 5 - 50 mm | 2 - 100 mm |
| Flipping speed | 6 cycles/min | 3 - 12 cycles/min |
| Flipping angle | 180° | 0 - 180° (customizable) |
| Control system | PLC + HMI | Mitsubishi |
| Power supply | 380V / 50 Hz / 3P | 220V - 690V (customizable) |
| Air pressure requirement | 0.6 MPa | 0.4 - 0.8 MPa |
| Machine weight | 1200 kg | depends on size |
Applications
- Folding drying lines for plywood, particleboard, MDF, gypsum board, and composite panels
- Battery plate drying (lead-acid / lithium)
- Printing & coating drying lines where double-side drying is required
- Insulation board production lines (mineral wool, fiberglass)
- Any continuous process needing reliable 180° board flipping
Customization Options
We offer fully customizable solutions including:
- Flipping angle (partial flip or stop position)
- Grip type (pneumatic clamps, vacuum cups, or belt pinch)
- Inlet/outlet conveyor height and width
- Material finish (stainless steel for food/pharma industry)
- Explosion-proof electrical configuration
- Remote monitoring & data logging module
"Your turnover cycle time, board dimensions, and control logic — all customizable."
Key Features
- Servo-driven flipping arm for smooth, jerk-free motion
- Anti-slip clamping system protects board surfaces
- Fail-safe brake stops at any emergency with minimal inertia
- Touchscreen interface with recipe storage for 50+ product types
- Energy-efficient standby - motor power < 30W in idle
- Quick-change wear parts for minimal downtime
Support and Services
- 24/7 online technical support
- On-site commissioning & training available
- 12-month warranty with optional extended plan
- Spare parts delivery within 48 hours (global hubs: USA, DE, CN, IN)
- Free remote diagnostics via VPN
Packing and Shipping
- Packing: Plywood case with anti-rust coating + vacuum-sealed electronics
- Shipping: FOB/CIF from Shanghai / Ningbo port
- Lead time: 20-35 working days (customized orders: +10 days)
- Transport: Standard 40' HC container (1-2 units per container depending on size)
Frequently Asked Questions
Q1: Can the flipping angle be set to less than 180°?
A: Yes, the angle is fully customizable from 0° to 180° via HMI.
Q2: Does this turnover machine work with an existing folding drying line from another brand?
A: Yes. We provide adapter frames and speed-matching parameters free of charge.
Q3: What is the minimum board length the machine can handle?
A: Standard min. is 1000 mm, but customizable down to 400 mm with shorter grippers.
Q4: Do you provide a servo version for very fragile boards?
A: Yes, a customizable acceleration/deceleration curve avoids cracks or surface marks.
