Rotary Spin Coating System for Pulp Molded Products: Biodegradable Film Precision Application Machine for Sustainable Packaging
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | OSMANUV |
| Сертификация: | ISO9001 |
| Номер модели: | OSM-ST-3200T |
| Документ: | Version 2.0 of 24-station s...on.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 набор |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Деревянная упаковка |
| Время доставки: | 60 дней |
| Условия оплаты: | T/T. |
| Поставка способности: | Переговоры |
|
Подробная информация |
|||
| Напряжение: | 220V, 380V, 380V/220V, 220V/380V, 380V/50 Гц | Состояние: | Новый |
|---|---|---|---|
| Послепродажная служба предоставлена: | Инженеры, доступные для обслуживания машины за рубежом, техническая поддержка видео, онлайн-поддержк | Измерение (l*w*h): | Индивидуальный размер, 2580*1130*1140 мм, 1000*2575*1750 мм, 1200*620*550 мм (L*W*H), 1030*1000*620 |
| Гарантия: | 1 год, один год, 12 месяца | Власть: | 3 кВт, 16 кВт, 65,3 кВт, 4,2 кВт, 0,75 кВт/220 В/50 Гц |
| Название продукта: | 24-станционная линия машины для спинового покрытия | ||
| Выделить: | rotary spin coating system for pulp molding,biodegradable film precision application machine,pulp molding coating machine with warranty |
||
Характер продукции
Rotary Spin Coating System for Pulp Molded Products: Biodegradable Film Precision Application Machine for Sustainable Packaging

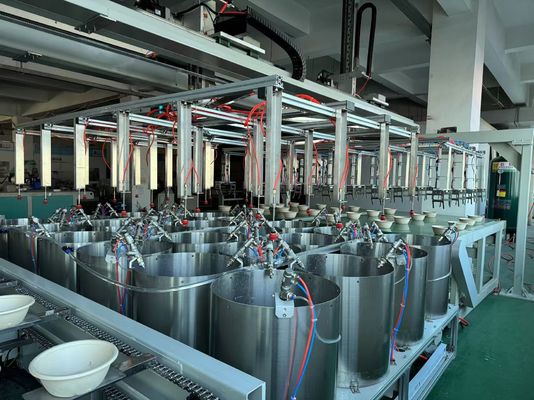

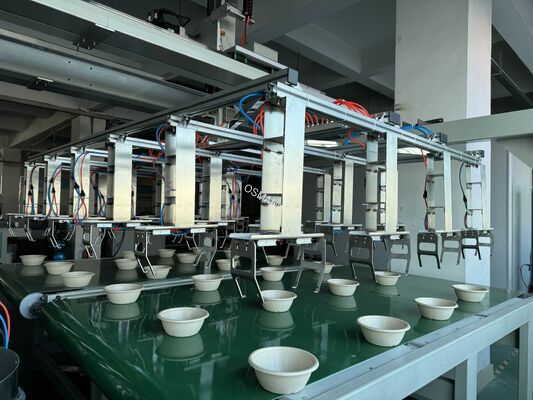

- Composition of Production Line:
This precision line features a servo-driven indexing system, 24 individually programmable stations, high-precision ultrasonic spray or low-flow spray valves for minimal waste, a controlled climate pre-dry zone, a energy-efficient UV-LED curing tunnel (for UV-curable bio-coatings), and a final cooling conveyor.
-
Product Description:
This advanced rotary spin coating line is designed for applying the latest biodegradable, compostable, or UV-curable coatings to premium and sustainable pulp packaging. It focuses on precision application to minimize material usage—a critical cost factor for specialty coatings—while ensuring perfect performance. Ideal for high-value products in the electronics, cosmetic, and organic food sectors. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-XT-3200T |
| Suitable Product | Premium Pulp Packaging, Electronics Trays, Cosmetic Containers |
| Number of Stations | 24 |
| Coating Technology | Programmable Ultrasonic Spray / Low-Flow Spin Coating |
| Coating Type | Biodegradable (PLA, PHA), Water-Based, UV-Curable |
| Curing Method | Customizable (UV-LED, NIR, or Low-Temp Hot Air) |
| Control System | Advanced PLC with IoT connectivity for data monitoring |
| Coating Weight Accuracy | ±2% |
-
Application:
Applying ultra-thin, functional barriers and aesthetic coatings to premium pulp molded products requiring home or industrial compostability certifications. -
Customization:
Highly customizable based on coating chemistry. Options include ultrasonic spray heads for ultra-low viscosity materials, UV-LED curing for instant cure, or NIR for gentle drying of heat-sensitive biopolymers. -
Feature:
-
Precision Application: Ultrasonic spin coating technology drastically reduces overspray and material consumption.
-
Sustainable Focus: Compatible with the latest bio-based and compostable coating formulations.
-
Gentle Curing: UV-LED or NIR options prevent thermal degradation of sensitive pulp substrates.
-
Data Tracking: IoT connectivity allows for monitoring of production metrics and quality control.
-
-
Support and Services:
Extensive application development support, partnership with coating material suppliers, and remote diagnostics. -
Packing and Shipping:
High-precision spray valves are shipped in separate, shock-proof packaging. The entire system is covered for dust and moisture protection. -
FAQ:
Q: Can this line handle very thin, water-based coatings without clogging?
A: Yes. The ultrasonic spin coating technology is specifically designed for low-viscosity, particle-free fluids and is far less prone to clogging than conventional air spray nozzles, ensuring consistent application and minimal maintenance.
