Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | OSMANUV |
| Сертификация: | ISO9001 |
| Номер модели: | ОСМ-УВ-102Т |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Деревянная упаковка |
| Время доставки: | 30 дней |
| Условия оплаты: | Т/Т |
| Поставка способности: | Переговоры |
|
Подробная информация |
|||
| Напряжение: | 220 В/50 Гц | Власть: | 2.15kw |
|---|---|---|---|
| Состояние: | НОВЫЙ | Размер(Д*Ш*В): | Индивидуальный размер: длина 1220 мм, ширина 470 мм, высота 460 мм. |
| Высота входа или выхода: | 130 мм | Скорость покрытия: | регулируемый, 1-10 м/мин |
| Ширина конвейера: | 300 мм | Гарантия: | 1 год |
| Выделить: | UV curing machine for plastic varnish,energy efficient UV curing system,38 percent UV reflective dryer |
||
Характер продукции

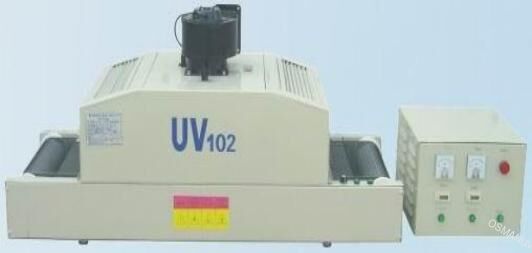

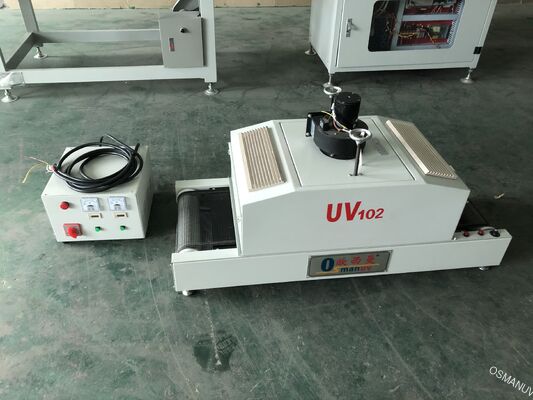

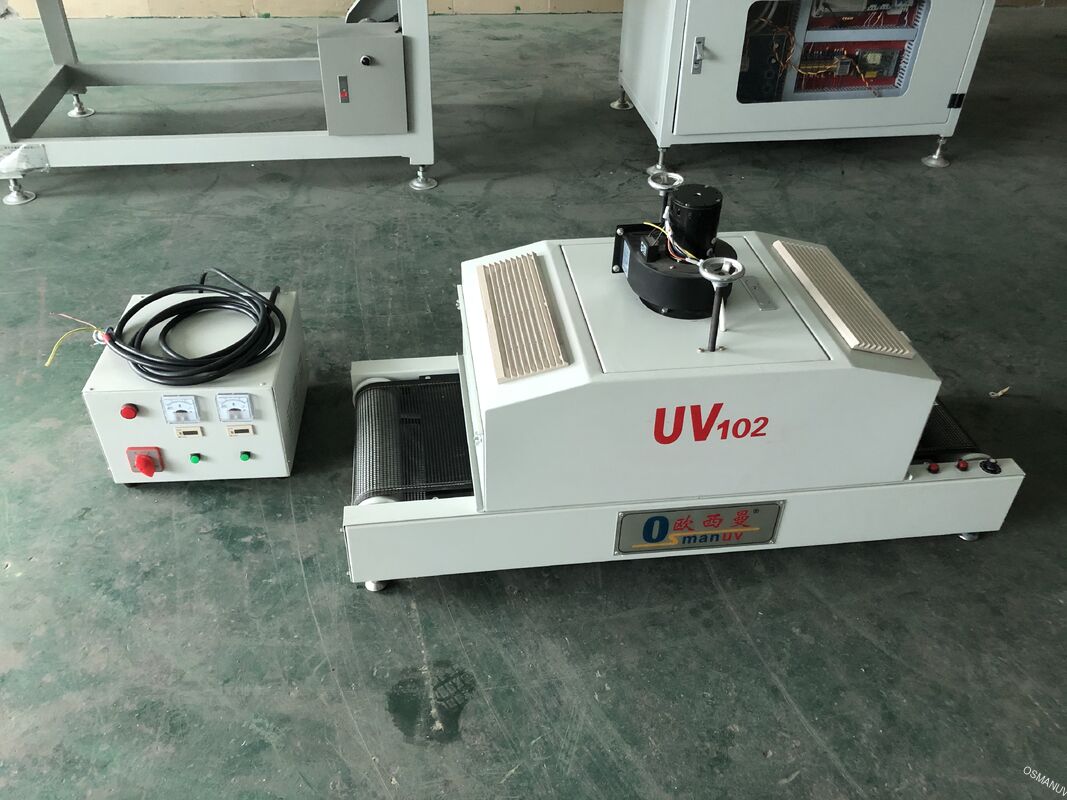

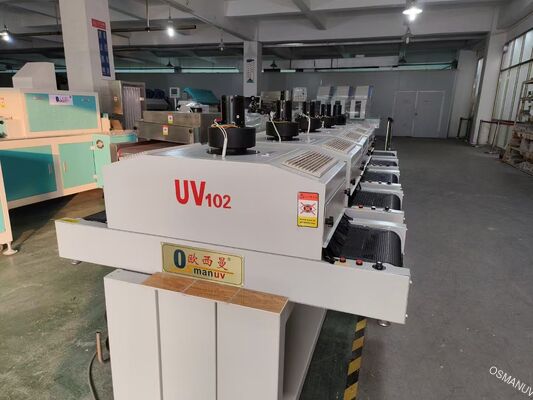

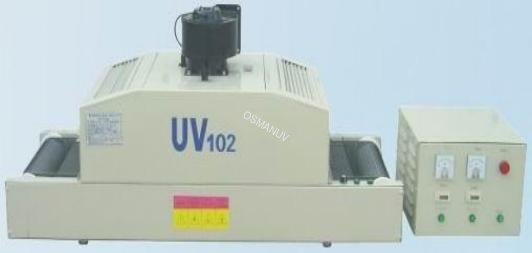

Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
Product Description:
This UV curing system is designed with energy efficiency as a core principle. Its high-precision German Alanod reflector delivers a 38% increase in UV light utilization compared to standard systems, directly translating to lower energy costs and reduced environmental impact. It ensures rapid and complete drying of clear varnishes and topcoats on plastic surfaces, resulting in a high-gloss, durable finish that resects yellowing.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Key Advantage | 38% Higher UV Efficiency (Alanod Reflector) |
| 2 | UV Lamps | 2 x 1KW Mercury Lamps |
| 3 | Lamp Life | 800-1000 Hours (Guaranteed) |
| 4 | Conveyor System | Teflon Mesh Belt (1-10 m/min) |
| 5 | Housing Material | 1.5mm Cold-Rolled Steel (Spray-Baked) |
| 6 | Electrical Safety | Leakage Breaker, Fuse (International Standards) |
Application:
Perfect for achieving a high-quality, clear coat finish on ABS, PC, PMMA plastic panels, cosmetic cases, and automotive interior trims.
Customization:
The machine's cooling system and electrical configuration can be customized to suit specific operational environments and power supply stability requirements.
Feature:
-
Significant reduction in electricity consumption for curing.
-
Enhanced UV uniformity prevents under-cured or over-cured spots.
-
Durable Teflon conveyor belt withstands high temperatures and UV exposure.
-
Complies with international electrical safety standards.
Support and Services:
-
Comprehensive warranty and energy efficiency performance support.
-
Guidance on lamp replacement schedules to maintain peak efficiency.
-
Preventive maintenance checklists provided.
Packing and Shipping:
Robust export packaging ensures safe transit. Standard lead time is 15 days. FOB Terms.
FAQ:
-
Q: How does the 38% efficiency saving calculate in real-world terms?
A: It means you can often achieve the same curing result at a lower power setting or a faster line speed, directly reducing your kWh consumption per part by a significant margin. -
Q: Is the reflective sheet easy to clean or replace?
A: Yes, the reflector is designed for easy access and maintenance. Keeping it clean is part of the standard maintenance to sustain the high-efficiency performance, and it is a customizable component that can be replaced if needed.
