Cost-Effective Natural Gas Drying for Enhanced Calcium Silicate Board Production
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | OSMANUV |
| Сертификация: | ISO9001 |
| Номер модели: | OSM-LRHG-1320T |
Оплата и доставка Условия:
| Количество мин заказа: | 1 набор |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Деревянная упаковка |
| Время доставки: | 35 дней |
| Условия оплаты: | T/T. |
| Поставка способности: | Переговоры |
|
Подробная информация |
|||
| Название продукта: | 28-метровая сушильная машина для природного газа | Измерение (l*w*h): | Подгонянный размер, 28000мм *2400мм *3140мм |
|---|---|---|---|
| Власть: | 24 кВт | Напряжение: | 380 В/50 Гц |
| Ширина покрытия: | 1320mm | Скорость покрытия: | регулируемый, 0,5-8 м/мин |
| Гарантия: | 1 год | Состояние: | Новый |
| Выделить: | natural gas drying machine,industrial calcium silicate board dryer,cost-effective gas drying equipment |
||
Характер продукции
Cost-Effective Natural Gas Drying for Enhanced Calcium Silicate Board Production
Product Description
This natural gas drying line is specifically engineered for calcium silicate boards, providing uniform heat distribution and precise temperature control throughout the drying process. The system ensures optimal moisture removal while maintaining board integrity and dimensional stability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-LRHG-1320T |

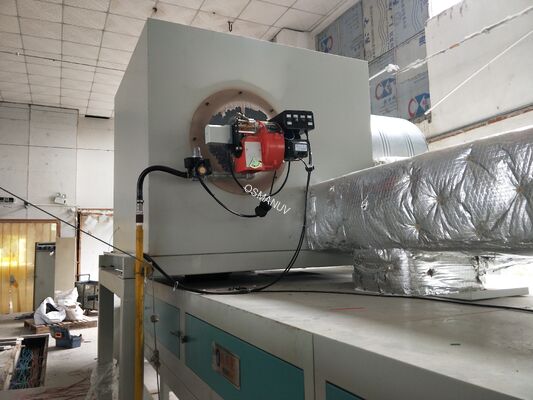

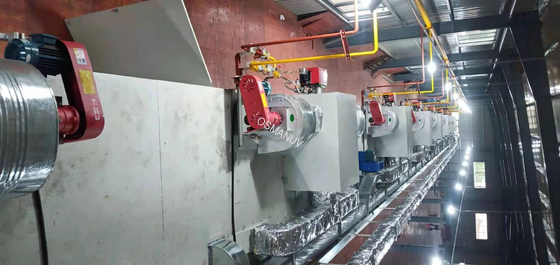

| Heating Source | Natural Gas Burner System |
| Maximum Temperature | 300°C |
| Conveyor Width | 1320 mm (Customizable) |
| Drying Zones | 6 zones (Customizable) |
| Fuel Consumption | 15-25 m³/h |
| Control System | PLC + HMI Touch Screen |
Application
Drying and curing of calcium silicate boards, fireproof panels, and architectural ceiling materials.
Customization
-
Customizable drying zone configuration
-
Customizable conveyor speed and width
-
Customizable temperature profiling
Feature
-
Uniform heat distribution
-
Precise temperature control
-
Energy efficient operation
-
Robust construction
Support and Services
-
Installation supervision
-
Operator training program
-
12-month warranty
-
Technical support
Packing and Shipping
-
Heavy-duty wooden crate
-
Weatherproof packaging
-
Professional export standards
FAQ
Q: What is the energy consumption rate?
A: Average consumption is 18-22 m³/h depending on production requirements.
