Automated Rotary Coating System for Pulp Mold Interior Finishing | Customizable Solutions
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Osmanuv |
| Сертификация: | CE |
| Номер модели: | OSM-ST-1006T |
| Документ: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 набор |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | Деревянная коробка |
| Время доставки: | 45 дней |
| Условия оплаты: | T/T. |
| Поставка способности: | Переговоры |
|
Подробная информация |
|||
| Упаковка: | Деревянный корпус | Измерение: | как требование клиента |
|---|---|---|---|
| Название машины: | Ультрафиолетовая линия УФ -покрытия Smart Home | Бренд частоты: | Шилин или Шнайдер |
| Стоимость покрытия: | Бюджетный | Бренд инвертора: | Шнайдер |
| Отчет о тестировании машин: | Предоставил | Нарисовать использование в отношении: | 100% |
| Выделить: | automated rotary coating system,pulp mold interior finishing machine,customizable pulp molding coating machine |
||
Характер продукции
Automated Rotary Coating System for Pulp Mold Interior Finishing | Customizable Solutions
Composition of Production Line
This integrated spin coating line comprises:
-
Rotary indexing table with multi-station design
-
Automated pulp mold loading/unloading system
-

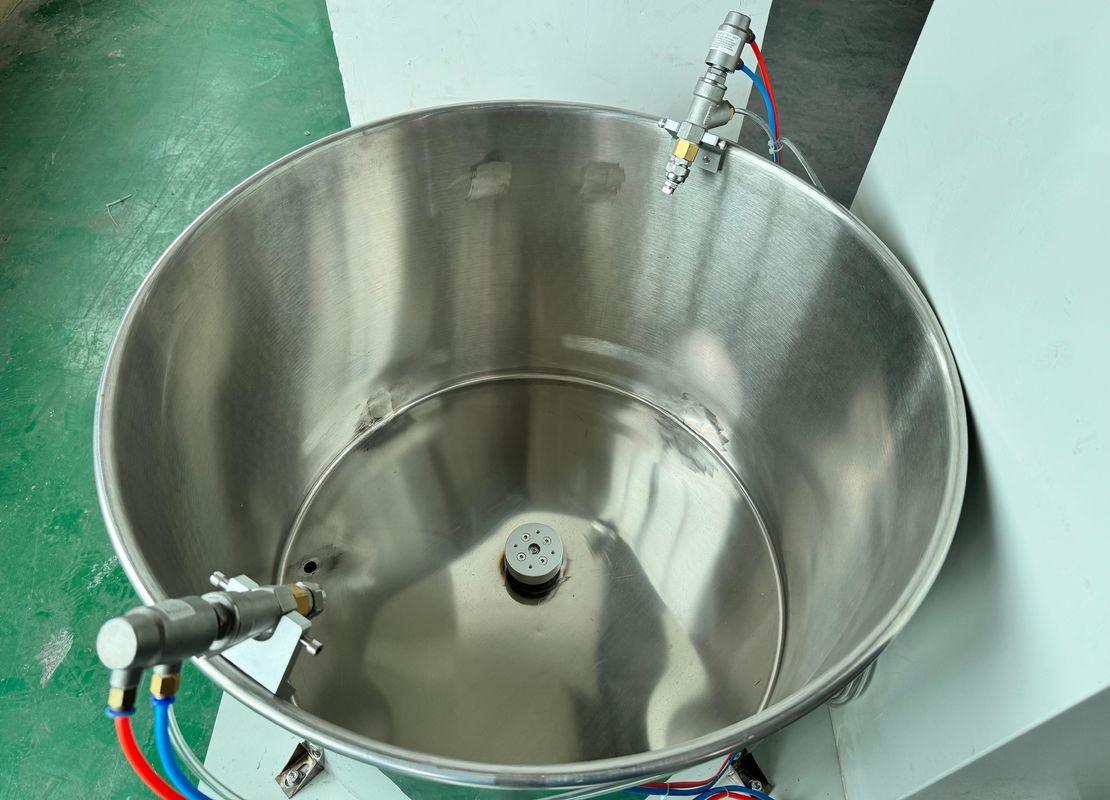

Precision spin coating heads with flow control
-
UV or thermal curing station (optional)
-
Drying tunnel with temperature control
-
PLC-based control system with HMI interface
-
Quality inspection vision system (optional)
The entire system can be customized to include additional processing stations or specific material handling requirements.
Product Description
Our spin coating production line specializes in applying uniform internal coatings to pulp molded products. Using advanced rotary coating technology, it ensures consistent coverage of barrier coatings, waterproofing layers, or functional surface treatments for various pulp-based containers and packaging products.
Technical Parameters
| Parameter | Specification | Customization Options | ||
|---|---|---|---|---|
| Model | SC-600 | SC-1000 | SC-1500 | Custom sizes available |
| Coating Stations | 4-8 stations | Expandable up to 16 stations | ||
| Production Capacity | 30-40 pcs/min | 50-60 pcs/min | 70-80 pcs/min | Speed adjustable |
| Coating Accuracy | ±0.5% volume variation | Adjustable precision control | ||
| Rotation Speed | 100-3000 RPM | Programmable speed profiles | ||
| Coating Viscosity Range | 50-5000 cPs | Adaptable to various coatings | ||
| Power Supply | 380V/3Phase/50Hz | Voltage customization available | ||
| Control System | Siemens PLC + 10" HMI | Brand preferences acceptable | ||
| Air Consumption | 6-8 bar, 500 L/min | Custom compressor options |
Application
Ideal for internal coating of:
-
Food containers (bowls, plates, cups)
-
Electronic packaging trays
-
Medical packaging products
-
Industrial packaging molds
-
Agricultural seedling trays
-
Customization
We offer fully customizable solutions including:
-
Tailored number of coating stations
-
Specific coating thickness requirements
-
Integration with existing production lines
-
Special material handling needs
-
Custom curing requirements (UV, thermal, IR)
-
Multi-layer coating capabilities
-
Brand-specific control system preferences
Feature
-
Precision Coating Control: Digital flow meters ensure coating consistency
-
Quick Changeover: Modular design allows rapid product changeovers
-
Energy Efficient: Optimized energy consumption with smart recovery systems
-
Hygienic Design: All contact parts made of SS316 or food-grade materials
-
Data Recording: Complete production data monitoring and reporting
-
Minimal Waste: Closed-loop coating system reduces material consumption
Support and Services
-
On-site installation and commissioning
-
Operator training and maintenance programs
-
24/7 remote technical support
-
Spare parts guarantee
-
Process optimization services
-
Annual maintenance contracts
Packing and Shipping
-
Export-standard wooden crates
-
Climate-controlled packaging for precision components
-
Professional shipping documentation
-
Worldwide shipping with insurance
-
FOB, CIF, or DAP terms available
FAQ
Q: What coating materials can be used with this system?
A: The system handles water-based coatings, solvent-based coatings, and various functional barrier coatings. Specific material compatibility can be customized.
Q: How is coating thickness controlled?
A: Through precise rotation speed control, flow rate regulation, and programmable recipe management.
Q: Can the line handle different product sizes?
A: Yes, quick-change fixtures and programmable settings allow rapid size changeovers.
Q: What level of customization do you offer?
A: We provide complete custom engineering from basic modifications to fully tailored solutions.
Q: How long is the delivery time for customized equipment?
A: Typically 8-12 weeks depending on the level of customization required.
Q: Do you provide sample testing services?
A: Yes, we offer sample testing and process development in our technical center.
Q: What after-sales support is available?
A: We provide 24-month warranty, online support, and optional maintenance contracts.
